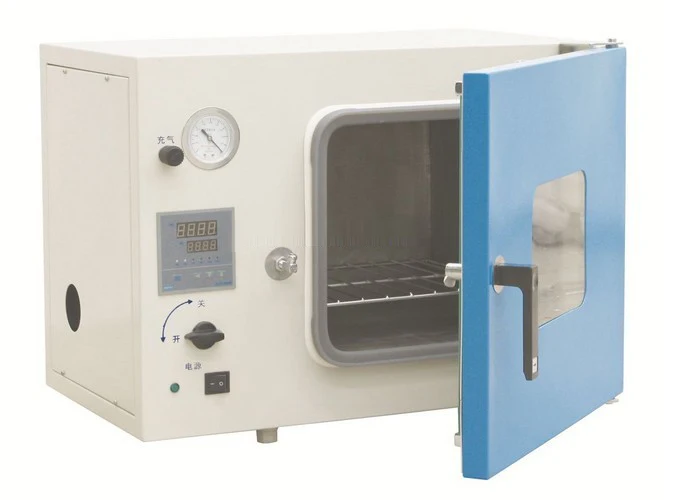

50Hz 1400W DZF 6050 vacuum drying oven

FOB Reference Price:Get Latest Price
$400.00 - $2,880.00 / Piece | 1 Piece/Pieces 50Hz 1400W DZF 6050 vacuum drying oven (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Vacuum Drying Equipment
Model Number:
DZF-6050
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YUNBOSHI
Voltage:
220V/50HZ, 220V /50HZ (can be customized)
Power(W):
2400 W
Dimension(L*W*H):
595*600*1245 mm
Certification:
CE
Inner size:
W700*D520*H525mm
External size:
W415*D370*H345mm
Temperature range:
RT +10 ~ 250 ℃
vacuum degree:
133Pa for 50Hz 1400W DZF 6050 vacuum drying oven
Net weight:
65 KG for 50Hz 1400W DZF 6050 vacuum drying oven
Gross weight:
90 KG for 50Hz 1400W DZF 6050 vacuum drying oven
Packing:
plywood case
Packing Size:
810*640*690mm
Glass:
double tempered glass
Weight:
65 KG for 50Hz 1400W DZF 6050 vacuum drying oven
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 year
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood case or honeycomb carton package for 50Hz 1400W DZF 6050 vacuum drying oven
Port
Shanghai
Lead Time :
25 Days for 50Hz 1400W DZF 6050 vacuum drying oven



Product Name  50Hz 1400W DZF 6050 vacuum drying oven   DZF-6021





   50Hz 1400W  DZF 6050   vacuum drying oven    Specifications:



Model

DZF-6020

DZF-6050

DZF-6090

DZF-6210

voltage

220V 50HZ

380V 50HZ

Input power(W)

500

1400

2400

3600

Temperature range

Ambient+10~250°C

resolution

0.1°C

volatility

±1°C

vacuum degree

133pa

Inner size(mm)

300*300*275

415*370*345

450*450*450

560*640*600

Outer size(mm)

585*450*455

700*520*525

595*600*1245

705*790*1395

Shelves (pieces)

1

2

2

3

Interior material

Stainless steel





   50Hz 1400W  DZF 6050   vacuum drying oven



optional accessories

*Intellective procedure temperature controller

*Intellective liquid crystal procedure temperture controller

*Independent limiting temperature controller

*Printer

*RS485 port and communication

*25mm/50mm/100mm cable port







 50Hz 1400W  DZF 6050   vacuum drying oven



Characteristics

1.Made of high quality cold-rolled steel plate, finished with electrostatic powder spraying; the coat is hard and firm, with strong rust resistance.

2.The studio for the high quality stainless steel plate, round shape, smooth, smooth, easy to clean.

3.Housing and studio, filling the superfine glass wool thermal insulation material, has good thermal insulation function, effectively guarantee the accuracy of the stability of the temperature in the cabinet and the use of the environment.

4.The door is for the double deck glass structure, the material heated in the oven can be observed clearly, and have good heat insulation effect. Can effectively avoid burns operator.

5.Studio and equipped with heat resistant rubber sealing ring between the glass door, to ensure to achieve high vacuum degree in the box.

6.The outer surface of the heater is installed on the inner wall of the workshop, and improve the uniformity of the temperature in the cabinet as much as possible, and to facilitate the room clean.

7.The temperature control by microcomputer intelligent digital technology manufacturing, with industrial PID self setting and function of four double LED Windows indication, the temperature control precision, strong anti-jamming ability, and the operation is very convenient





About us:

vertificate
